T & D OH LINE MATERIALS

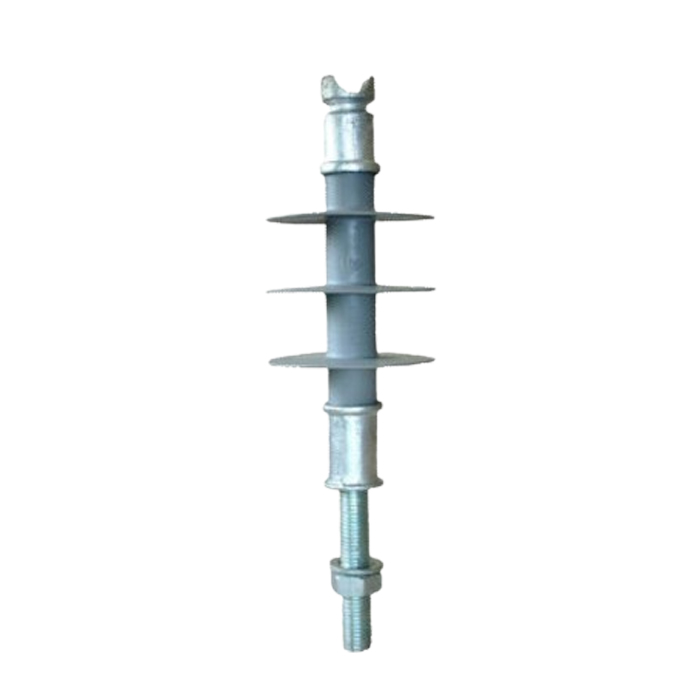

POLYMER TYPE PIN INSULATORS
LV/MV & EHV OH Line Materials
Insulator Type: Pin/Disc/Post
Insulator Materials: Composite Polymer
Hightest System Voltage: 12kV/24kV/36kV
Visible Discharge test Voltage: 9kV
Power Frequency: 45kV
Impulse Withstand Voltage: 70kV
Minimum Creepage Distance: 320(mm)
Minimum failing Load: 5 kN
Dia. of FRP rod: 24(mm), 33(mm)
Polymer Type Pin
Insulators

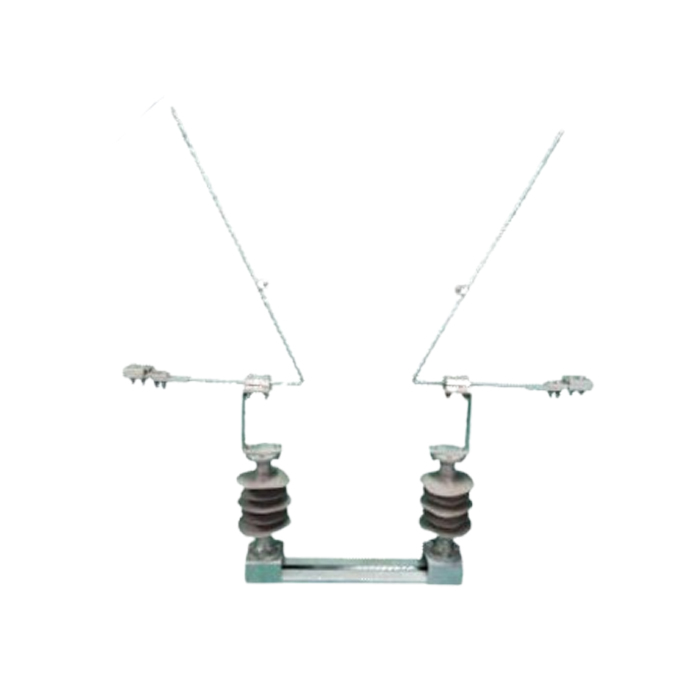

HORN GAP (HG) FUSES
Highest System Voltage: 12kV/24kV/36kV
Rated Current: 200A
Type Of Insulator Materials: Porcelain & Polymer
Temperature Rise: As Per IS/IEC
Gap Of FW: 200mm
Diameter Of HG ROD: 8 mm
Lighting Impulse Withstand: 75kV (Peak)
Power Frequency (Dry & Wet): 28kV (Peak)
Applicable Standard: IS- 1363/1367/4218
Horn Gap
(HG) Fuses

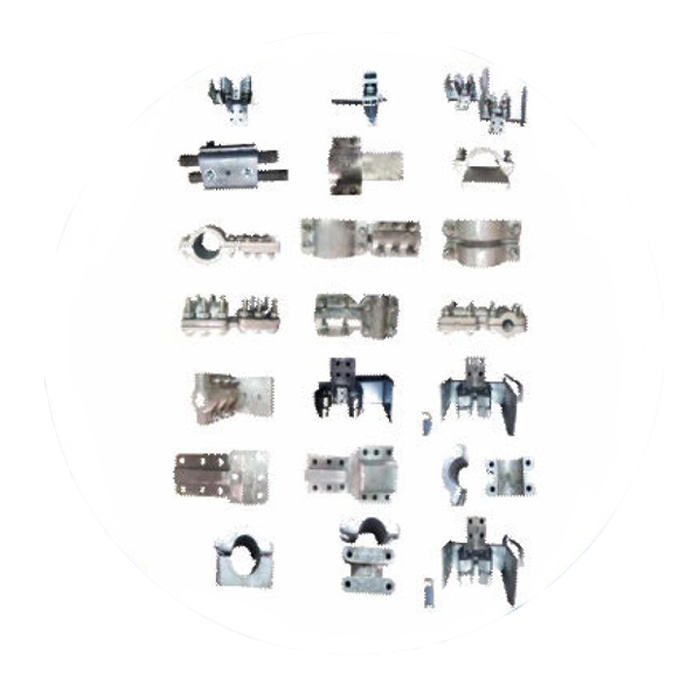

CLAMP & CONNECTORS
Items 1: Bolted/Compression for islolater/Braker
Items 2: Bolted/Compression for instrument Trafos
Items 3: T- Connectors
Items 4: PI Supports Clamps
Items 5: Wedge /PG Connectors
Items 6: Outdoor Lug Connectors
Form LT to EHT (upto 132kV)
