ENERGY CABLES
LOW VOLTAGE CABLES

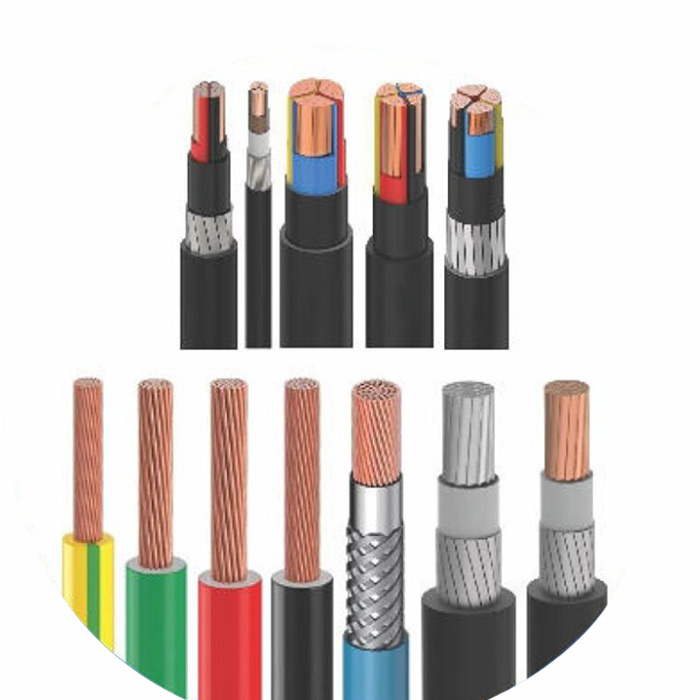

LV, MV, HV & EHV Power Cables

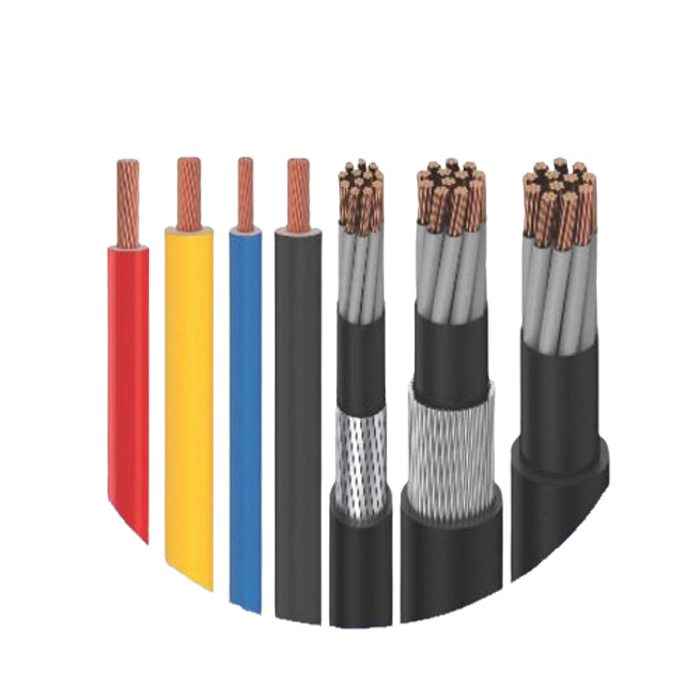

Low Voltage Power Cables (110V to 3.6kV)
Minimum Voltage Range: 110V TO 3600V
Maximum Voltage Range: 3600 Volts
Current Rating: upto 400A
Available Cores: 1C/2C/3C/3.5/4C/5C
Type Of Insulation: PVC/EPR/XLPE
Type Of Conductors: Copper/Aluminium
Type Of Protection: Armoured/ Un Armoured
Standards: IS/IEC
Low Voltage Power Cables
(110V to 3.6kV)
SPECIAL CABLES

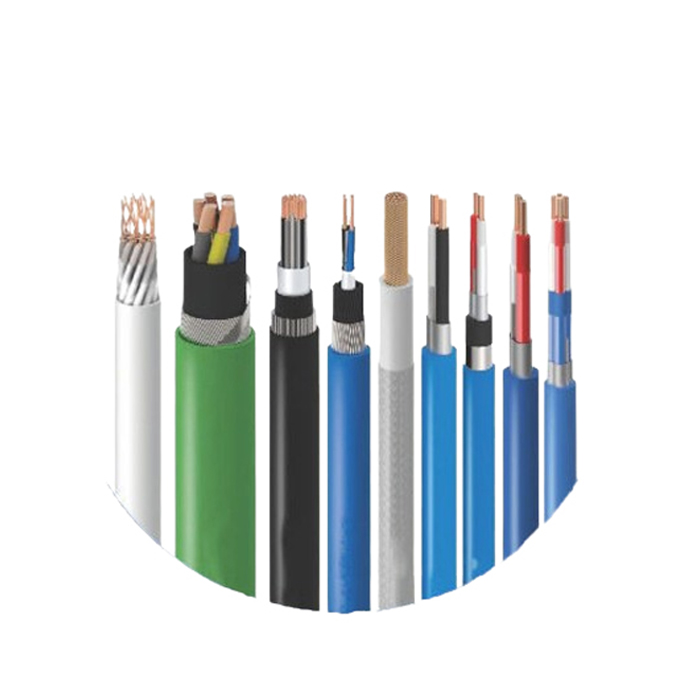

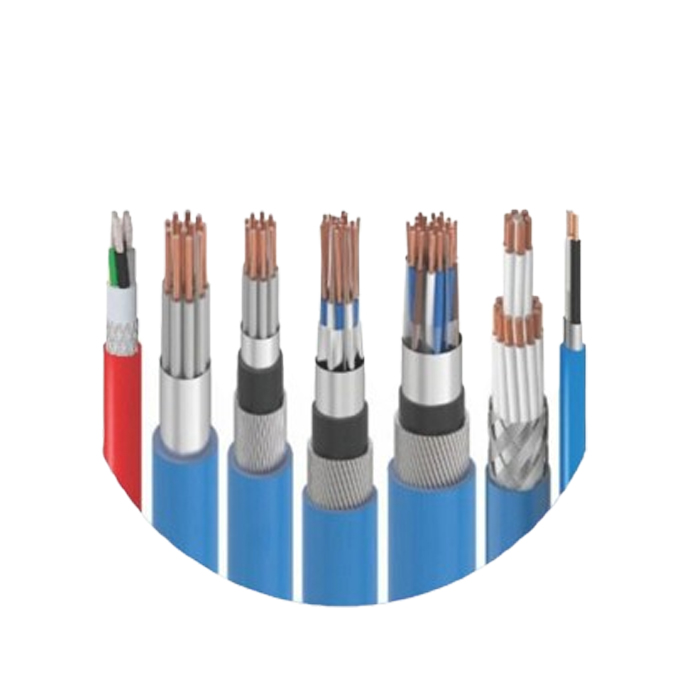

Instrumentation, Automation, VFD Cables
Minimum Voltage Range: 110 Volts
Maximum Voltage Range: 1100V Volts
Current Rating: upto 48C
Type Of Insulation: PVC/PP/PE/FRTC
Type Of Conductors: Class 2 Tinned Copper
Type Of Protection: Copper/Aluminium/Steel/ACSR
Inner Sheath: PVC/RUBBER/XLPE
Standards: IS/IEC/BS/EN
Instrumentation, Automation,
VFD Cables
Refineries, Oil & Petroleum Cables
Minimum Voltage Range: 110 Volts
Maximum Voltage Range: 3300V Volts
Current Rating: upto 48C
Type Of Insulation: PVC/EPR/XLPE
Type Of Conductors: Tinned Copper
Type Of Protection: SWA
Inner Sheath: LSZH
Standards: IEC/IS
Refineries, Oil &
Petroleum Cables
Defence, Marine & Other Cables
Minimum Voltage Range: 110 Volts
Maximum Voltage Range: 1100 Volts
Current Rating: upto 48C
Type Of Insulation: PVC/EPR/XLPE
Type Of Conductors: Copper/Aluminium
Inner Sheath: HOFR
Standards: IEC/IS
Defence, Marine &
Other Cables
MEDIUM VOLTAGE CABLES

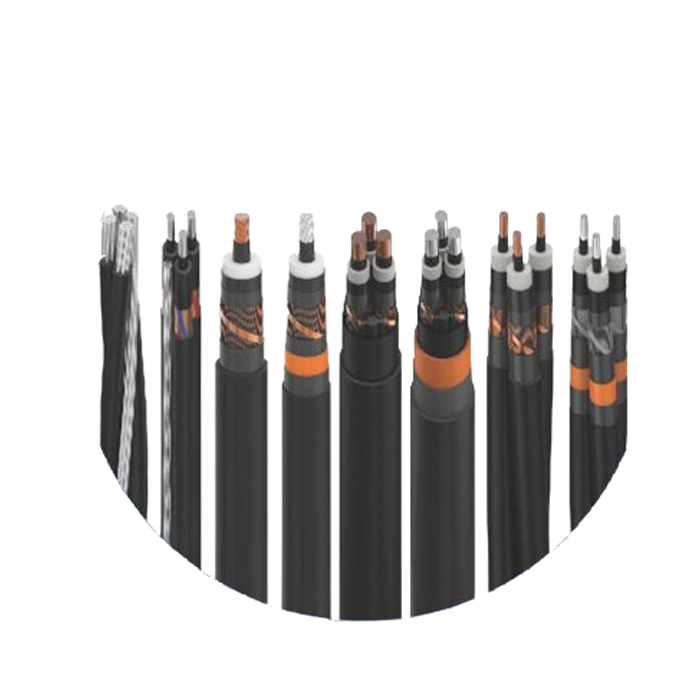

Medium Voltage Power Cables ( 3.6kV to 36kV)
Minimum Voltage Range: 3600 Volts(3.6kV)
Maximum Voltage Range: 36000 Volts(36kV)
Available Cores: 1C/3C/3.5/4C
Type Of Insulation: PVC/EPR/XLPE
Type Of Conductors: Copper/Aluminium
Type Of Protection: Armoured/ Un Armoured
Type Of System: Earthed/ Unearthed
Standards: IS/IEC
Medium Voltage Power Cables
( 3.6kV to 36kV)

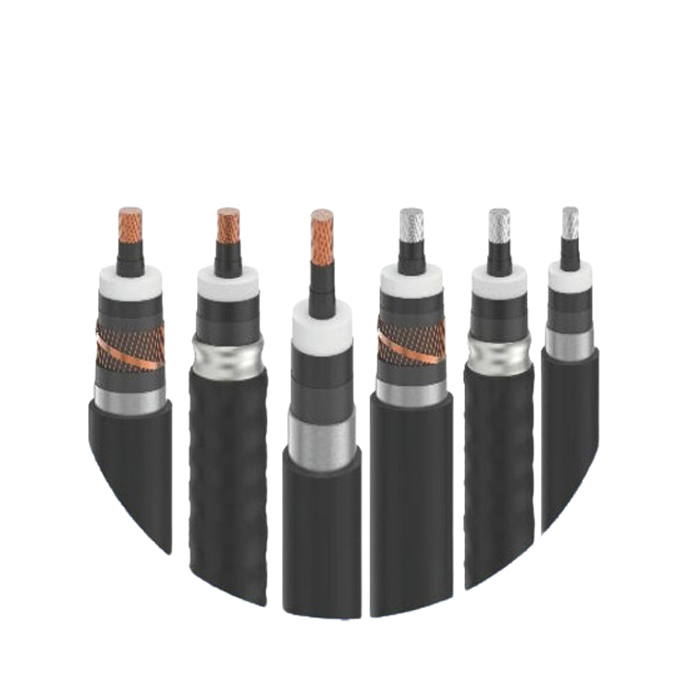

HIGH & EXTRA HIGH VOLTAGE CABLES
High & Extra High Voltage Power Cables ( 66kV to 765kV)
Minimum Voltage Range: 66,000 Volts(66kV)
Maximum Voltage Range: 4,00,000 Volts(400kV)
Available Cores: 1C
Type Of Insulation: XLPE/MI-PPL/P-L
Type Of Conductors: Copper
Type Of Protection: Armoured
Type Of System: Earthed/ Unearthed
Standards: IS/IEC
High & Extra High Voltage Power Cables
( 66kV to 765kV)
WINDMILL CABLES (EPR CABLES)
WINDMILL CABLES (EPR CABLES)
Nominal Voltage: 690 V / 890 V
Highest Voltage: 1100 V
Material: Annealed Tinned Copper
No. of Cores: Single Core / Three Core
Nom. Size / Cross Section: 50 Sq.mm
Shape: Circular
Inner Sheath Material: CSP, Type SE4
Inner Sheath Min Thickness: 1.8 mm
Outer Sheath Material: CSP, Type SE4
Nominal Thickness: 3.0 mm
Approximate Overall Diameter of Cable: 38.5 mm
Max DC Resistance: 0.393 Ohm / km
Minimum Bending Radius: 12 x Outer Diameter
WINDMILL CABLES
( EPR CABLES)
SOLAR CABLES (DC Solar Cable 4 Sq.mm)
SOLAR CABLES (DC Solar Cable 4 Sq.mm)
Nominal Voltage: 1.5 / 1.5 kV DC (Nom) (1.8 kV DC(Max.)
Highest Voltage: 1.5 / 1.5 kV DC (Nom) (1.8 kV DC(Max.)
Material: Annealed tinned flexible copper conductor Class 5 of IEC 60228
No. of Cores: Single Core
Nom. Size: 4
Shape: Flexible (Class - 5) As Per IEC 60228:2004
No. of strands: 56
Max. Wire dia.(Before stranding): 0.31
Approx. Conductor Diameter: 2.45
Max. D.C. Resistance at 20°C: 5.09
Material: Cross linkable low smoke halogen free-(polyolefin type) - Compound as per annexure B table B. 1 of EN 50618
Nom. Thickness / Min. Thickness: 0.7 / 0.53
Colour of Insulation: Natural
Applicable Standard: EN-50618/2014, EN50395, EN50396, EN60811-403,
EN50525-1,EN60332-1-2, EN50289-4-17 &
EN 60811-501
SOLAR CABLES
DC Solar Cable 4 Sq.mm
SOLAR CABLES (DC Solar Cable 6 Sq.mm)
SOLAR CABLES (DC Solar Cable 6 Sq.mm)
Nominal Voltage: 1.0 / 1.0 kV AC (MAX 1.0)
Highest Voltage: 1.5 / 1.5 kV DC (Nom) (1.8 kV DC(Max.)
Material: Annealed tinned flexible copper conductor Class 5 of IEC 60228
No. of Cores: Single Core
Nom. Size: 6
Shape: Flexible (Class - 5) As Per IEC 60228:2004
No. of strands: 84
Max. Wire dia.(Before stranding): 0.31
Approx. Conductor Diameter: 3.1
Max. D.C. Resistance at 20°C: 3.39
Material: XL Low Smoke Halogen Free - (polyolefin type) - Compound as per annexure B table B. 1 of EN 50618
Nom. Thickness / Min. Thickness: 0.7
Colour of Insulation: Natural
Applicable Standard: EN-50618/2014, EN50395, EN50396, EN60811-403, EN50525-1,EN60332-1-2, EN50289-4-17 &
EN 60811-501
SOLAR CABLES
DC Solar Cable 6 Sq.mm
SOLAR CABLES (DC Solar Cable 10 Sq.mm)
SOLAR CABLES (DC Solar Cable 10 Sq.mm)
Nominal Voltage: 1.0 / 1.0 kV AC (MAX 1.0)
Highest Voltage: 1.5 / 1.5 kV DC (Nom) (1.8 kV DC(Max.)
Material: Annealed tinned flexible copper conductor Class 5 of IEC 60228
No. of Cores: Single Core
Nom. Size: 10
Shape: Flexible (Class - 5) As Per IEC 60228:2004
No. of strands: 80
Max. Wire dia.(Before stranding): 0.41
Approx. Conductor Diameter: 4.1
Max. D.C. Resistance at 20°C: 1.95
Material: XL Low Smoke Halogen Free - (polyolefin type) - Compound as per annexure B table B. 1 of EN 50618
Nom. Thickness / Min. Thickness: 0.7
Colour of Insulation: Natural
Applicable Standard: EN-50618/2014, EN50395, EN50396, EN60811-403, EN50525-1,EN60332-1-2, EN50289-4-17 &
EN 60811-501
SOLAR CABLES
DC Solar Cable 10 Sq.mm
INDUSTRIES & COMMERCIAL CABLES
(Industries, Commercial, Machines, Multimedias, Domestic Cables)

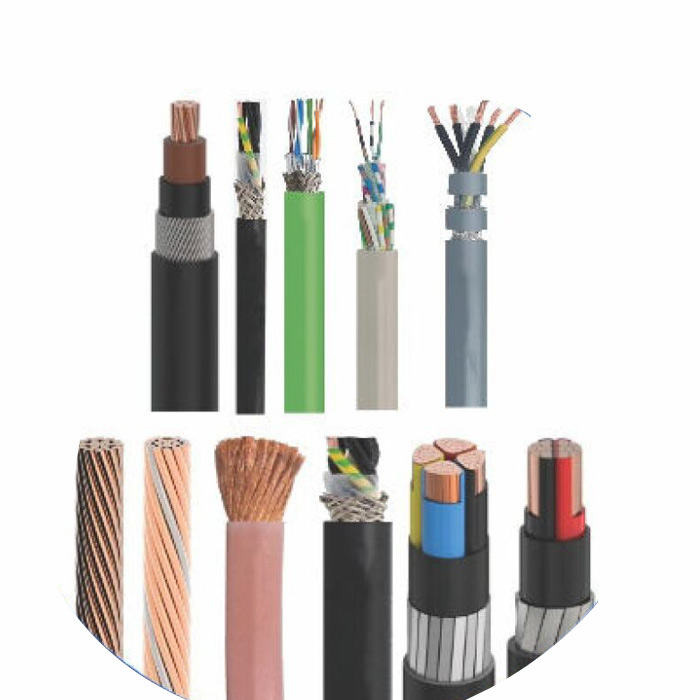

Industrial Cables
Minimum Voltage Range: 110 Volts
Maximum Voltage Range: 6600V Volts
Current Rating: upto 400A
Available Cores: 1C/2C/3C/3.5/4C/5C
Type Of Insulation: PVC/EPR/XLPE
Type Of Conductors: Copper/Aluminium
Type Of Protection: GS/SS/AL Armoured
Standards: IEC/IS
Industrial Cables
Servo, Mechines, Multimedias, Hardware Cables
Minimum Voltage Range: 110 Volts
Maximum Voltage Range: 1100 Volts
Available Cores: 1C/3C upto 32Cr
Type Of Insulation: PVC/EPR/XLPE
Type Of Conductors: Copper/Aluminium
Type Of Protection: Armoured/ Shielded
Standards: IEC/IS
Servo, Mechines, Multimedias,
Hardware Cables

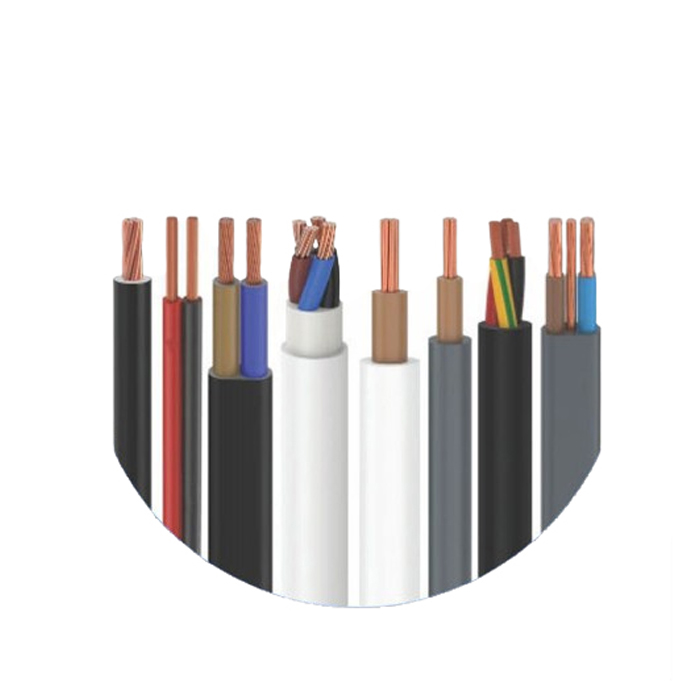

Building, Lighting, Domestic Cables
Minimum Voltage Range: 110 Volts
Maximum Voltage Range: 3300 Volts
Current Rating: upto 400A
Available Cores: 1C/2C/3C/3.5/4C/5C
Type Of Insulation: PVC/EPR/XLPE
Type Of Conductors: Copper/Aluminium
Type Of Protection: GS/SS/ AL Armoured
Standards: IEC/IS
Building, Lighting,
Domestic Cables
RAILWAYS, FIRE & SWITCHGEARS
(Railway, Swithgears & Fire Heat Resistant Cables)
Railway Cables & Conductors (12V to 30kV)
Minimum Voltage Range: 12V Volts
Maximum Voltage Range: 30000 Volts
Current Rating: upto 2000A
Available Cores: 1C/2C/3C/3.5/4C/5C
Type Of Insulation: PVC/EPR/XLPE
Type Of Conductors: Copper/Aluminium
Type Of Protection: Armoured/ Un Armoured
Standards: IS/IEC
Railway Cables & Conductors
(12V to 30kV)
Switchgears Panel Control Cables ( 12V to 1.1kV)
Minimum Voltage Range: 12 Volts
Maximum Voltage Range: 1100 Volts
Available Cores: 1C/3C/4C/12C/24C/38C
Type Of Insulation: PVC/XLPE
Type Of Conductors: Copper/Aluminium
Type Of Protection: Armoured/ Shielded
Standards: IS/IEC
Switchgears Panel Control Cables)
( 12V to 1.1kV)
Fire & Heat Resistant Wires & Cables
Minimum Voltage Range: 110 Volts
Maximum Voltage Range: 3300 Volts
Available Cores: 1C/2C/3C/3.5/4C/5C
Type Of Insulation: PVC/XLPE
Type Of Conductors: Copper/Aluminium
Type Of Protection: Armoured/ Un Armoured
Standards: IS/IEC
